Howo A7 Tractor VG1500060051 Manual Water Pump
Content
Product Name | Howo A7 Tractor VG1500060051 Manual Water Pump Truck Parts For Sale |
Brand | Sinotruk HOWO, HOWO A7,Shacman,Foton Auman, Faw, Beiben,Dongfeng, CAMC.XCMG |
Original factory | Shandong China |
Delivery Time | Within 5 working days after receipt of payment |
Port | Qingdao |
Minimum Quantity | 1 |
Package details | Cartoon, wooden box or as per customers requirement |
Payment Term | L/C, T/T, Western Union |

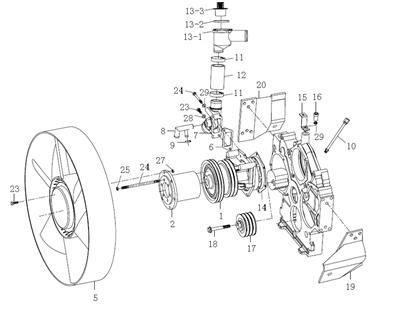

| Pos | Number of part | Quantity | Standard sepcification | Designation |
| 1 | VG1500060051 | 1 | Water pump assembly | |
| 2 | VG1500060240 | 1 | Flange | |
| 5 | VG2600060446 | 1 | Viscous fan | |
| 6 | VG14060024 | 1 | Gasket | |
| 7 | VG1560060023 | 1 | Intake nozzle | |
| 8 | VG1560060004 | 1 | Pipe connector | |
| 9 | 190003989336 | 2 | 16/22-ZN N05074 | Hose clamp |
| 10 | VG2600060456 | 1 | Water pump seal assembly | |
| 11 | 190003989308 | 2 | 44/60 N05074 | Hose clamp |
| 12 | VG61000060276 | 1 | Hose | |
| 13 | VG1047060005 | 1 | Thermostat | |
| 13-1 | VG1500061203 | 1 | Thermostat body | |
| 13-2 | VG1047060004 | 1 | Water seal | |
| 13-3 | VG1047060003 | 1 | Thermostat core | |
| 14 | VG140608 | 1 | Gasket | |
| 15 | VG1500060001 | 1 | Support | |
| 16 | Q218B1625 | 1 | Socket cap screw | |
| 17 | VG2600060313 | 1 | Tensioning roller assembly | |
| 18 | 190011400001 | 1 | Q1861290TF2 | Flange bolt |
| 19 | VG1095060006 | 1 | Mounting bracket l. | |
| 20 | VG1095060009 | 1 | Mounting bracket r. | |
| 23 | 190003802424 | 7 | M8×25-8.8-ZN DIN933 | Hex head bolt |
| 24 | 190003813148 | 1 | M8×75-8.8-ZN DIN931 | Hex head bolt |
| 25 | 190003888452 | 6 | VM10-8-ZN DIN980 | Self-locking nut |
| 27 | 190003888451 | 6 | VM8-8-ZN DIN980 | Self-locking nut |
| 28 | 190003932023 | 2 | B8-ZN DIN137 | Wave spring washer |
| 29 | 190003931182 | 1 | B16-ZN DIN127 | Spring lockwasher |
| 309 | VG1560051001 | Intake valve | 6 |
| 310 | VG2130050065 | Valve clearance adjustment nut | 12 |
| 311 | VG1500040009 | Clamping block | 5 |
| 312 | 1.6156E+11 | Cylinder head assembly | 6 |
| 313 | 1.90004E+11 | Hexagonal plug | 1 |
| 314 | AZ103804000004 | Cylinder head cover gasket | 6 |
| 315 | Q1200822F3 | Stud | 2 |
| 316 | Q1200865F3 | Stud | 2 |
| 317 | Q1840860 | Hexagonal flange bolt | 12 |
| 318 | Q32008 | Hexagonal flange nut | 4 |
| 319 | VG1200040023A | Clamping block | 5 |
| 320 | VG1200040027 | Clamping block | 2 |
| 321 | VG1200040034 | Shoulder nut | 21 |
| 322 | VG14010388 | Lifting eye screw | 2 |
| 323 | VG14040065A | Cylinder head cover | 6 |
| 324 | VG1500040012 | Lifting eye clamping block | 2 |
| 325 | VG1500040014 | Exhaust valve spring lower seat | 6 |
| 326 | VG1500040023 | Cylinder head main bolt | 24 |
| 327 | VG1500040049 | Cylinder head gasket | 6 |
| 328 | VG1500040104A | Water outlet pipe | 1 |
| 329 | VG1500040106A | Water outlet pipe gasket | 1 |
| 330 | VG1500060045A | Pipe joint | 1 |
| 331 | VG1560040032 | Valve stem sealing sleeve | 12 |
| 332 | VG29114 | Plug cover | 1 |
| 333 | VG29118 | Plug cover | 1 |
| 334 | VG9003080003 | Compound sealing gasket | 1 |
| 335 | 1.615E+11 | Connecting rod assembly | 6 |
| 336 | VG1560030012 | Piston pin retaining ring (see Figure 161000030014) | 12 |
| 337 | VG1560030013 | Piston pin (see Figure 1614 030025) | 6 |
| 338 | VG1560030050 | Piston ring assembly | 1 |
| 339 | VG1560037011A | Piston | 6 |
| 340 | VG1560037033 | Connecting rod bearing lower bearing | 6 |
| 341 | VG1560037034 | Connecting rod bearing upper bearing | 6 |
| 342 | 1.6156E+11 | Crankshaft assembly | 1 |
| 343 | 1.90003E+11 | Ball bearing | 1 |
| 344 | Q1201090F3 | Stud | 2 |
| 345 | Q150B1070TF2 | Hexagonal head bolt | 8 |
| 346 | Q150B1085 | Hexagonal head bolt | 10 |
| 347 | Q340B10 | Hexagonal nut | 2 |
| 348 | Q41810 | Wave elastic washer | 12 |
| 349 | Q43062 | Elastic ring for hole | 1 |
| 350 | VG1062020003 | Crankshaft pulley | 1 |
| 351 | VG1540020003 | Shock absorber (see Figure R61540020003) | 1 |
| 352 | VG2600020311 | Plug | 6 |
| 353 | AZ1560020567 | Flywheel assembly | 1 |
| 354 | VG1500020046 | Hexagonal head bolt (see Figure 181500020125) | 9 |
| 355 | VG1062010001 | Engine nameplate | 1 |
| 356 | VG2600010791 | Nameplate rivet | 4 |
| 357 | 1.90003E+11 | Plastic fastening belt | 2 |
| 358 | 1.90004E+11 | Cylindrical pin | 4 |
| 359 | 1.90004E+11 | Cylindrical pin | 6 |
| 360 | 1.90004E+11 | Cylindrical pin | 2 |
| 361 | 1.90004E+11 | Lightweight hexagonal head cylindrical plug | 1 |
| 362 | 1.90004E+11 | Hollow bolt | 6 |
| 363 | 61557010008A | Twin cylinder air compressor timing gear chamber | 1 |
| 364 | AZ103801000006 | Hose clamp | 2 |
| 365 | AZ103801000008 | Hose clamp | 1 |
| 366 | MQ6-08092-0144 | Locking bolt A-M14X1,5-ST-A3C | 1 |
| 367 | Q1200822S | Stud--pre-applied locking layer | 3 |
| 368 | Q1200822S | Stud--pre-applied locking layer | 5 |
| 369 | Q1200822S | Stud--pre-applied locking layer | 1 |
| 370 | Q1200830S | Stud--pre-applied locking layer | 1 |
| 371 | Q1200880S | Stud--pre-applied locking layer | 2 |
| 372 | Q1201230S | Stud--pre-applied locking layer | 6 |
| 373 | Q1201245S | Stud--pre-applied locking layer | 2 |
| 374 | Q150B0616 | Hexagonal head bolt | 4 |
| 375 | Q150B0630S | Hexagonal head bolt-pre-applied locking layer | 6 |
| 376 | Q150B1018 | Hexagonal head bolt | 2 |
| 377 | Q1840616 | Hexagonal flange bolt | 1 |
| 378 | Q18408110 | Hexagonal flange bolt | 27 |
| 379 | Q1840816 | Hexagonal flange bolt_M8×16 | 1 |
| 380 | Q1840820 | Hexagonal flange bolt_M8×20 | 1 |
| 381 | Q1840820 | Hexagonal flange bolt_M8×20 | 2 |
| 382 | Q1840835 | Hexagonal flange bolt | 6 |
| 383 | Q1840875 | Hexagonal flange bolt | 7 |
| 384 | Q1840880 | Hexagonal flange bolt | 1 |
| 385 | Q1841025 | Hexagonal flange bolt | 3 |
| 386 | Q1841075 | Hexagonal flange bolt | 6 |
| 387 | Q1841090 | Hexagonal flange boltM10 | 1 |
| 388 | Q218B0820S | Hexagon socket head screw - pre-coated locking layer | 1 |
| 389 | Q218B1020 | Hexagon socket head screw | 2 |
| 390 | Q32008 | Hexagon flange nut | 5 |
| 391 | Q32008 | Hexagon flange nut | 6 |
| 392 | Q33212 | Type 2 all-metal hexagon lock nut | 8 |
| 393 | Q40406 | Light spring washer | 4 |
| 394 | Q41710 | Saddle elastic washer | 2 |
| 395 | Q5280308 | Elastic cylindrical pin | 6 |
| 396 | Q5280612 | Elastic cylindrical pin | 6 |
| 397 | Q5281220 | Elastic cylindrical pin | 4 |
| 398 | Q617B18 | Hexagon head screw plug | 1 |
| 399 | Q734B2650265 | O-ring rubber seal | 1 |
| 400 | VG1034010003 | Rubber hose | 1 |
| 401 | VG1034010176 | Thrust plate | 2 |
| 402 | VG1047010038 | Front oil seal | 1 |
| 403 | VG1047010050 | Rear oil seal assembly (labyrinth type) | 1 |
| 404 | VG1062010190 | Air compressor gear cover | 1 |
| 405 | VG1096019037 | Refueling pipe assembly | 1 |
| 406 | VG12G00040038 | Rubber hose with fiber interlayer | 1 |
| 407 | VG1400010032 | Seal ring | 2 |
| 408 | VG14010040A | Air compressor gear cover gasket | 1 |
| 409 | VG14010070A | Camshaft gear cover gasket | 1 |
| 410 | VG14010086A | Refueling short pipe gasket | 1 |
| 411 | VG1460010011 | Oil return short pipe | 1 |
| 412 | VG1460070011 | Main oil channel rear plug | 1 |
| 413 | VG1500010005 | Pad | 2 |
